- Incorporates Solar Manager technology to detect surpluses and heat water with solar energy.
- Adapts its consumption in real time according to available energy.
- Dual operation: solar-only or combined with mains power.
- Wall installation vertically or horizontally with power points on the left.
- Control panel led with temperature level selected and errors signaling.
- Safety thermostat and overheating protection.
- “Dry-Firing” protection that prevents turning on the water heater if it is not filled with water before connecting.

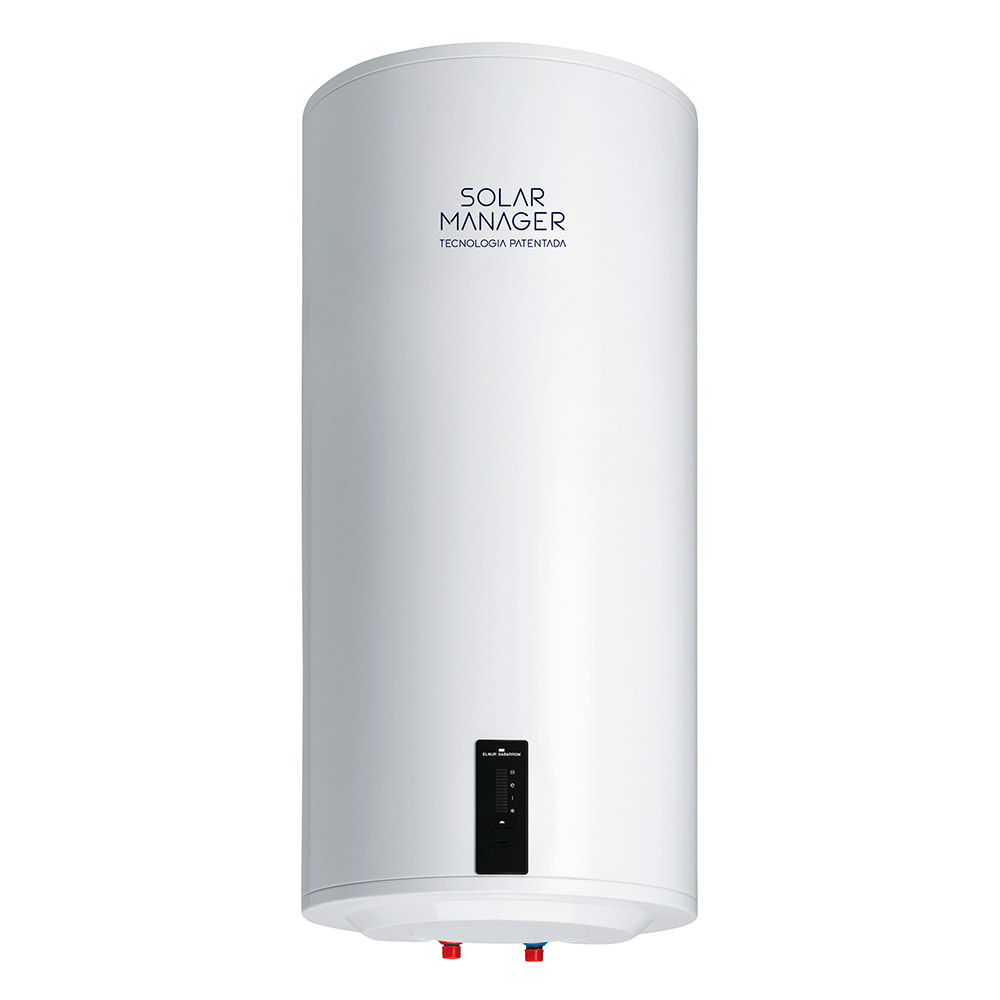

TSG Solar Electric Water Heater
Make the most of the energy you produce and enjoy free hot water all year round.
Wifi controlled solar electric water heater for photovoltaic installations
Reduce consumption and increase comfort in your home with the new TSG wifi solar electric water heater, designed to produce domestic hot water with surplus photovoltaic energy generated by solar panels in installations with discharge to the grid.
This solar electric water heater constantly adapts its consumption to the available production of solar energy and can connect to the grid or operate exclusively with your installation’s surplus energy.
This device adapts to all types of wall installations, both horizontally and vertically. The TSG wifi enabled solar electric water heater has excellent durability and features leading anti-corrosion technology, ensuring the best possible quality and a long service life.
ADVANTAGES
PRODUCT AND FEATURES
- Enamelled steel tank with anti-corrosion protection.
- Magnesium anode.
- Dielectric hoses with high mechanical resistance.
- Direct immersion electric heating element.
- Water heater On/Off and temperature adjustment key.
- Non-return and pressure relief valve.
- High quality insulation against heat losses.
- Supplied with 1m main cable and plug for electrical connection.
TECHNICAL SPECIFICATIONS
| TSG HEATER MODEL | TSG-100 | TSG-150 |
|---|---|---|
| Capacity | 100 L | 150 L |
| Output | 1600 W | 1600 W |
| Current | 6,9 A | 6,9 A |
| Voltage | 230 V~ | 230 V~ |
| Insulation | Class I | Class I |
| Colour | White | White |
| Average consumption to keep water at 65 ºC (1) | 2,20 kWh/24h | 3,20 kWh/24h |
| Heating time 65 ºC from 10 ºC | 4 h 5 min | 6 h 8 min |
| Quantity of water available with 40 ºC mixture(2) | 137 L | 213 L |
| Water connections | 1/2” | 1/2” |
| Net weight without water | 33 kg | 45 kg |
| Dimension A | 96,5 cm | 133,5 cm |
| Dimension B | 76,5 cm | 111,5 cm |
| Dimension C | 20,5 cm | 22,5 cm |
| Dimension D | 49,5 cm | 84,5 cm |
| Dimension G | 51 cm | 51 cm |
| Diameter | 45,4 cm | 45,4 cm |
| Depth (including support) | 46,1 cm | 46,1 cm |
| Energy classifications | C | C |
Energy classification according to European Regulation 812/2013.
(1) Valid values for an ambient temperature of 20ºC and 65ºC hot water temperature in the heater (Standard EN 60379: 2005).
(2) Standard EN 50440.
ACCESSORY REQUIRED FOR THE USE OF SURPLUS ENERG
TSG WATER HEATER + SOLAR BOX
- Takes advantage of surplus solar energy in grid-connected photovoltaic installations.
- Dual operation: solar-only or combined with mains power.
- Adapts its consumption in real time according to the available production of solar energy.
- A single SOLAR BOX accessory is required for the control and management of the TSG Water Heater in self-consumption installations.
WIFI CONTROL ACCESSORY REQUIRED FOR CONNECTED WATER HEATER
TSG WATER HEATER + USB SWITCHBOARD
- Programmable operation 24/7 to connect to the most cost-effective window of your contracted electricity rate.
- Provides hot water all day by connecting to the grid at the desired times.
- Can adapt its power consumption by communicating with other Elnur Gabarron devices in your home.
- G Control USB HUB needed to function as a connected water heater that heats water during scheduled hours.
RECOMMENDED ACCESSORIES
VALVE FOR ELECTRIC WATER HEATERS
- Thermostatic valve offered as an accessory.
If you have any questions about our range of electric water heaters, don’t hesitate to reach out to us using the following form.
